This is What Equidistant Axis Labels Look Like

Oct 14th, 2014 / Data Visualization / , , , ,
Line chart where axis labels are equidistant and data is represented in solid and dashed lines.

Let’s pretend you’re tracking whether friendly reminder messages bring in more responses to your survey.

Can you spot the fatal flaw?

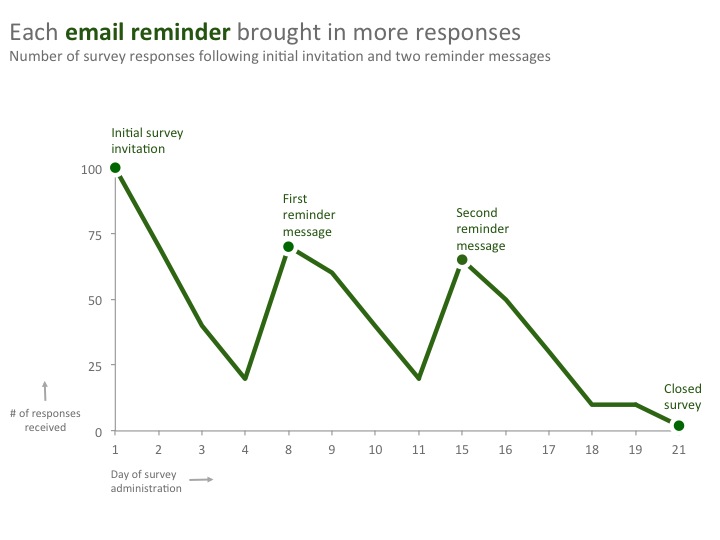

Line chart with axis labels that are equidistant.
See it?

Go check out the x-axis.

Where the heck are Days 5, 6, 7, 12, 13, 14, and 20?

(This is where you gasp.)

Yep, the analyst accidentally skipped a few labels along the x-axis. This is an innocent enough mistake. Most likely, there weren’t any responses to the survey on Days 5, 6, 7, 12, 13, 14, and 20. So the analyst was busy and forgot to manually insert “0’s” for those days in the data table.

This is what Stephanie Evergreen and I described in our Data Visualization Checklist: Axis labels are equidistant means that the spaces between axis intervals should be the same unit, even if every axis interval isn’t labeled.

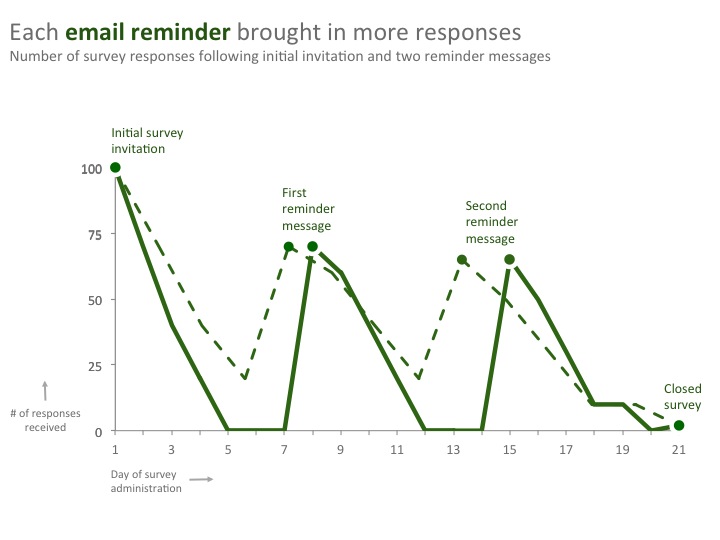

Here’s what that graph should’ve looked like.

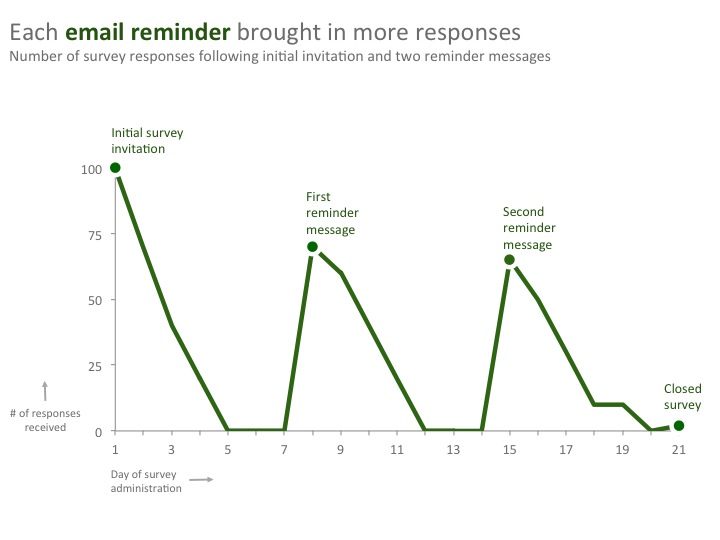

Line chart with axis labels that are equidistant.
Can you spot the differences now?

The dotted line is the incorrect graph and the solid line is the correct graph.
Our analyst’s error means the readers saw an incorrectly shaped graph.

I can’t tell you how many times I’ve seen this same mistake in published research and evaluation reports. The analysts have accidentally skipped days, years, cohorts, and so on. Whoops!
Line chart where axis labels are equidistant and data is represented in solid and dashed lines.
The good news: What an easy fix. Just add new rows or columns to your data table, insert some 0’s, and voila! your graph will have equidistant axis labels.
